Interface Wired Interface
- 8 ports : RS485, RS232C(3ports), CAN(2ports), Digital I/O(2ports)
Wireless Interface
- WiFi 801.11bgn / BLE 4.1

- Zigbee, Wision, LPWA
Communication Mode Cat1, Cat4, Cat M1, NB-IoT GPS : AGPS, Standalone Support

LTE communication Automotive gateway based on loT

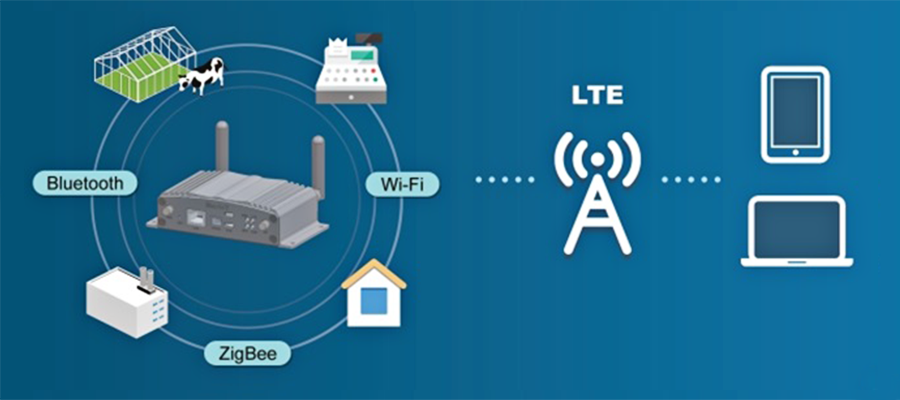

As AIG-100 is an industrial loT device which has application expandability of loT service, it monitors and controls variety of sensors that is applicable throughout the industry.
Multi-port interface
AIG-100 is applying various standards of Multi-port sensor connection interface and it is also easy to be designed as it can be customized by application of industrial field.
All-in-one LTE Communication
As AIG-100 is the Multi-Carrier supported product, it supports Korea and Japanese telecommunication companies communication frequency bandwidth with the integral antenna.
Because it is designed to be compatible to Cat.1, Cat.4, Cat.ml and NB-loT which is LTE ommunication speed standards and to be applied ESIM and USIM, it can be used selectively by customer's requirements.

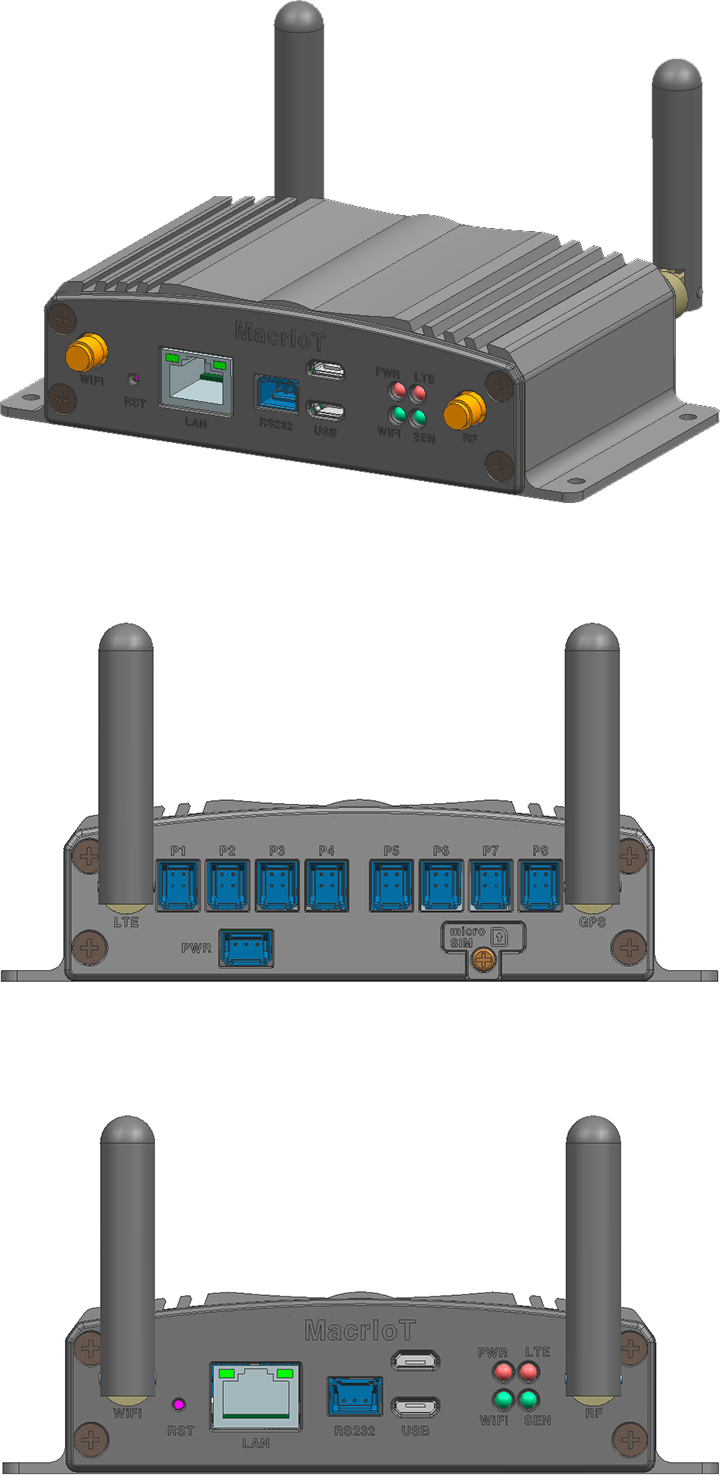

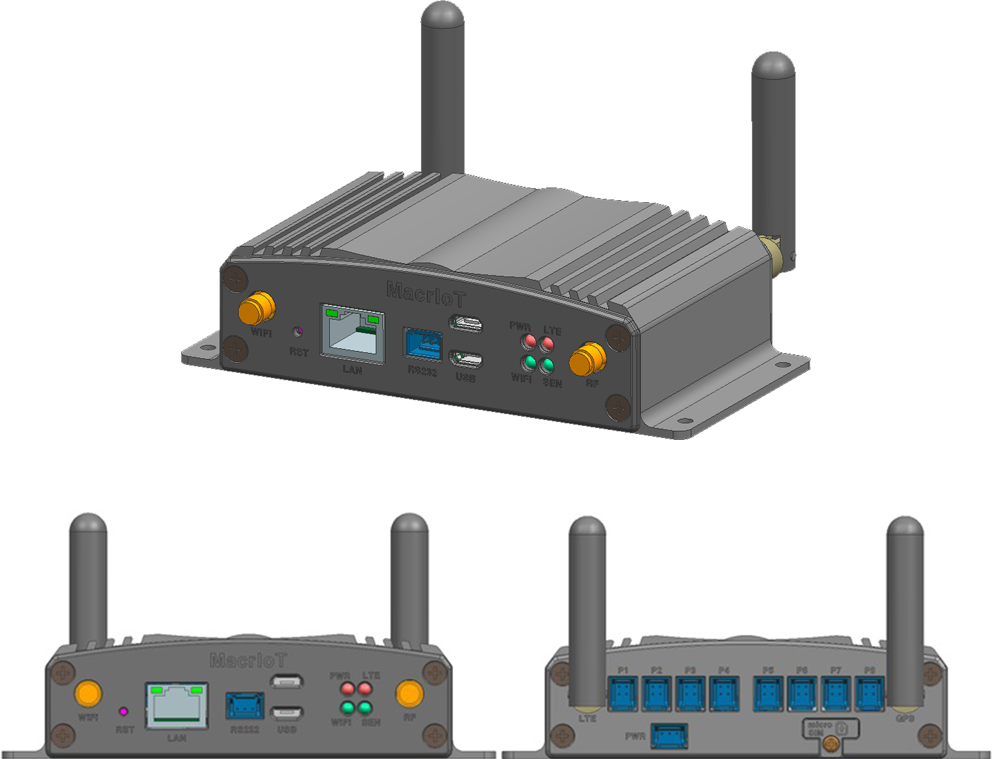

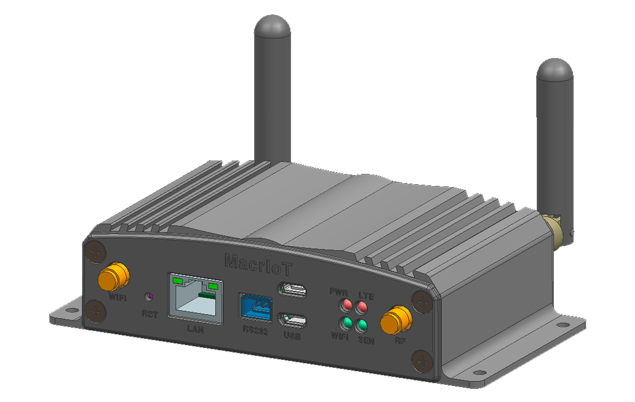

Compact Design Product
AIG-100 is easy to install inside and outside of all environment as it is designed as a small size with optimized lay out.

Product Specification

ITEM		Specification
LTE Modem	CPU	Arm 32bit Cortex-A7 CPU, built-in Linux (MDM9X07 or MDM9X28)
	GPS	A-GPS & S-GPS
	USB	1 Port
	Category	Cat.1, Cat.4
MCU	Core	Arm 32bit Cortex-M4 CPU, w/h FPU, 170MHz
	Memory	Flash Memory : 512KB SRAM Memory : 96KB
	CAN	2 Port (FD CAN Support)
	RS232C	3 Port
	RS485	1 Port
	GPIO	2 Port
LAN		LAN 10/100Mbps
Wireless		WiFi 802.11n 2.4Ghz
SIM Card		micro uSIM Socket, (eSIM support)
Power		+7V ~ +36V - Reverse Voltage Protection - Over Voltage Protection - Over Current Protection
Dimension	Size	130 x 68 x 33mm
	Weight	230g
	Material	Aluminum
