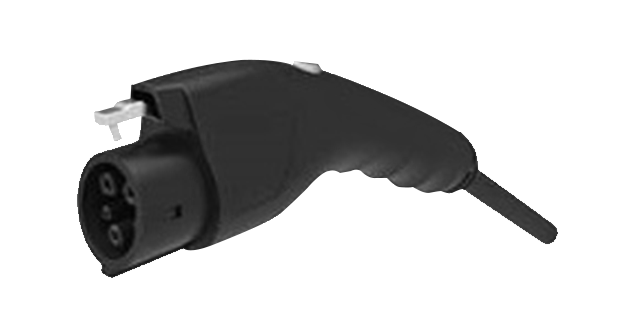

Electic Vehicle Connectors
| Article | Data |
|---|---|
| APPROVAL | QA mandatory inspection report Link |
| Test standard | SAE J1772-2017 |
| Charging mode | 3 |
| Connect manner | C |
| Current type | AC |
| Work ambient temperature [℃] | -30~+50 |
| Storing ambient temperature [℃] | -40~+80 |
| The tallest elevation [M] | <2000 |
| Ingress protection | Protect cover IP54 / Work status IP55 |
| Rated current [A] | 16A/32A/40A |
| Rated voltage [V] | 240 |
| Bear voltage [V] | 2500 |
| Power pins | 3（L、N、PE） |
| The signal contact number | 2（CS、CP） |
| Rated voltage of the signal contact number | 2A |
| Insulate resistanc0e [MΩ] | >10 |
| Earthing resistance [Ω] | <0.05 |
| Temperature monitor | / |
| The contact plastic material | PA66,UL94V-0 |
| Surface material | High strength thermoplastic material / UL94V-0 |
| Contact material | Copper alloy+ The coping insulates, Silver- plated |
| The insertion/pullout times [Time] | >10000 |
| Insertion/pullout force [N] | <75 |
| Withstanding impact force | Affordable 1 meter height fell or 2 ton car run over pressure |
| Warranty | 12 months |
| Cable type | UL62 EV 3*10AWG+1*18AWG (32A) |
| Recommend stripping length 5.5mm | |
