The best company that leads IOT and provides trust and value to customers
Real-times storage of high-definition video, GPS and G-sensor data

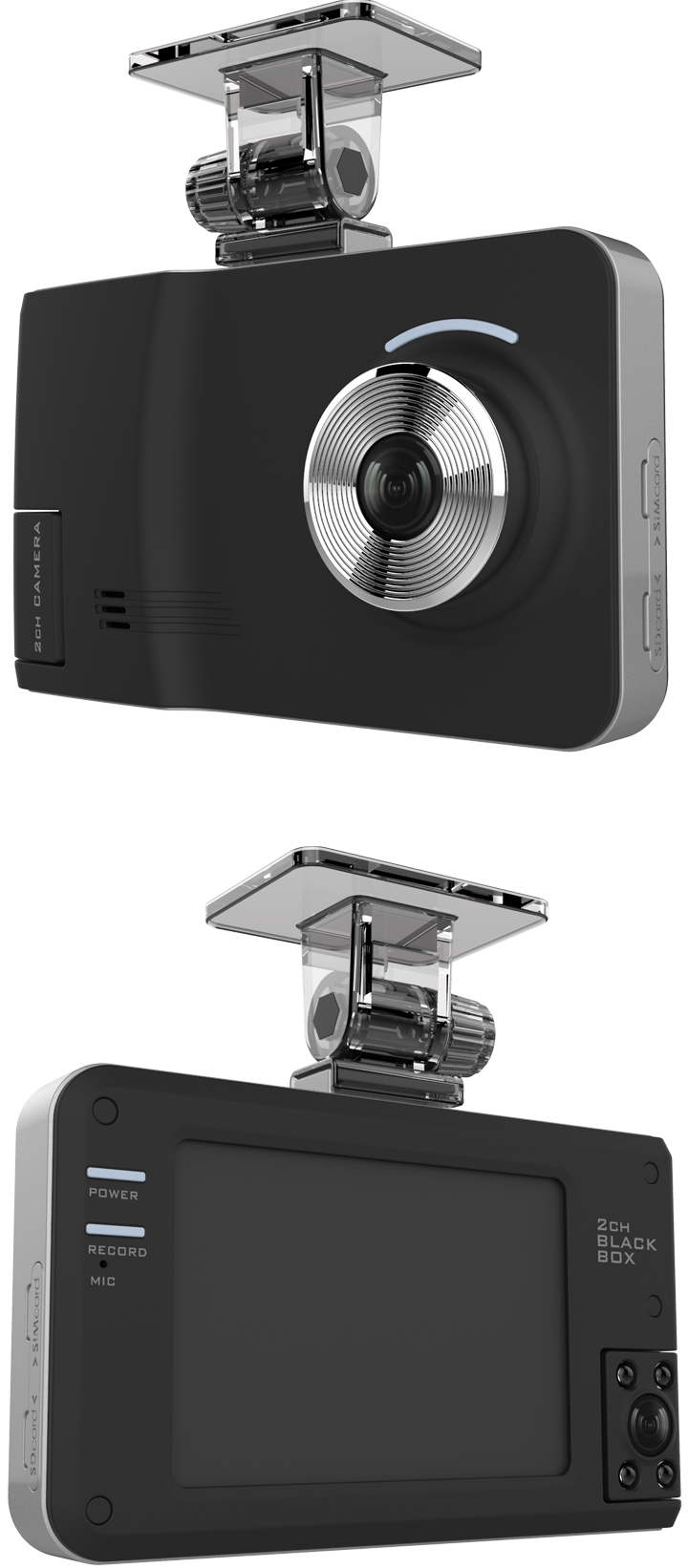

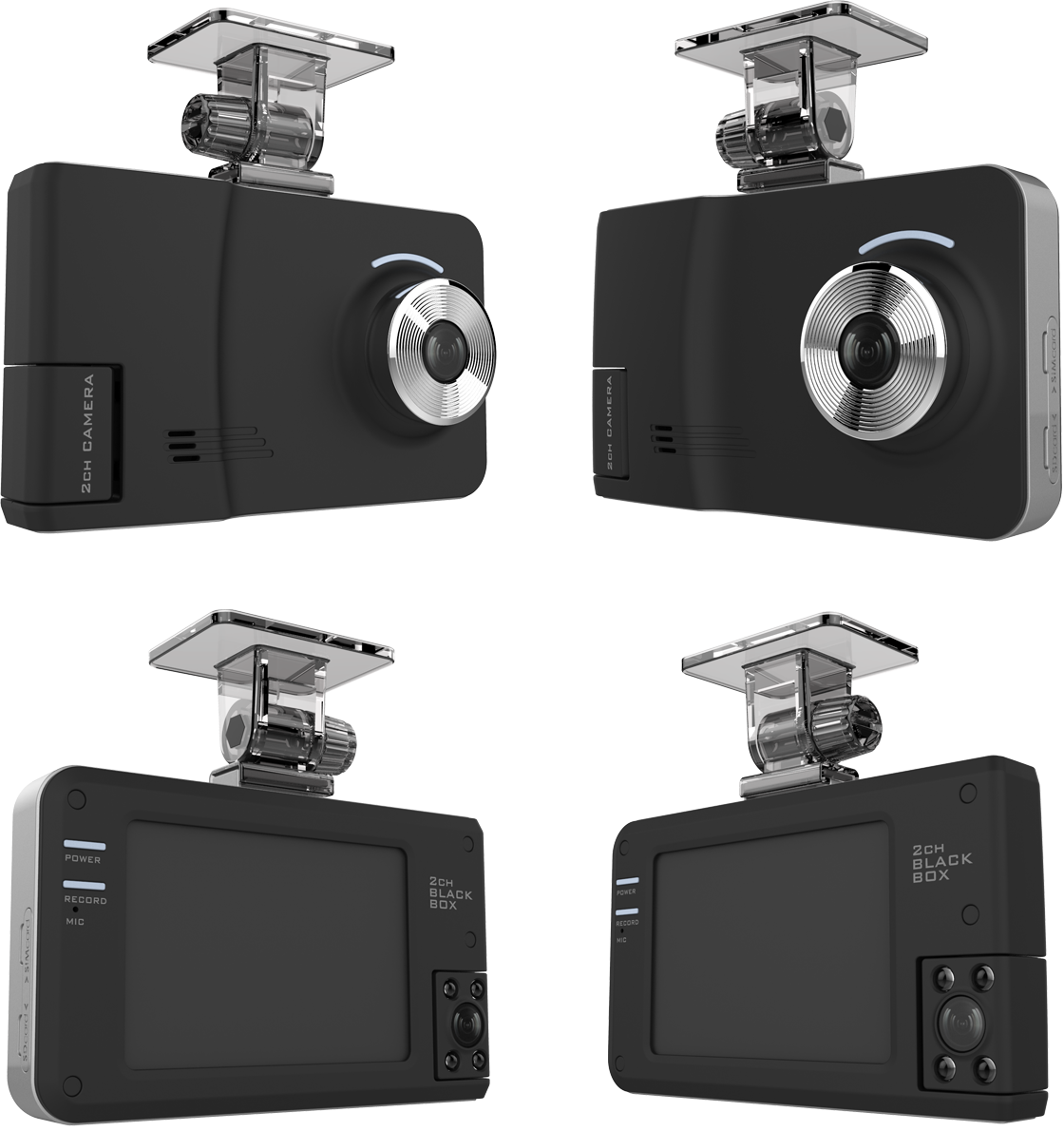

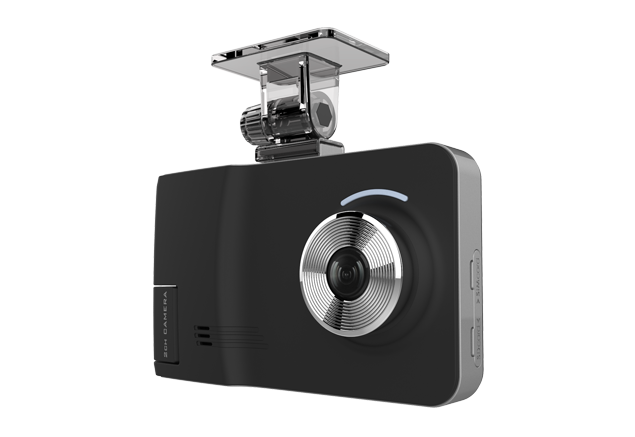

All-in-one product with front / rear 2CH cameras and LTE modem and antenna
Ported various ADAS functions such as LVDS, FCWS, Reverse lane driving warning and etc. for safe driving

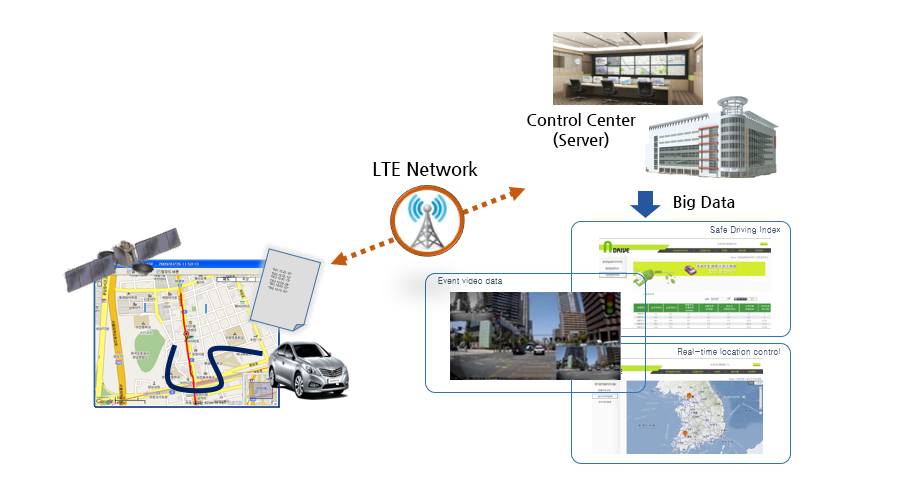

Management of vehicle operation by real-time location control by transmitting GPS data
In case of occurrence of various events (accident, sudden turn, sudden stop, sudden start, etc.), it immediate transmits the status information of the driver to the CLOUD Server
| ITEM | Specification | |||
|---|---|---|---|---|
| LTE Modem | CPU | Arm 32bit Cortex-A7 CPU, built-in Linux (MDM9X07 or MDM9X28) | ||
| GPS | A-GPS & S-GPS | |||
| Category | Cat.1, Cat.4 | |||
| Black Box | Core | Embedded Arm Cortex-A9 CPU, 792MHz (A12A35) | ||
| Memory | DDR3 Memory : 512MB-32bit, NAND Memory : 256MB-8bit | |||
| Front | Rear | |||
| Camera | Resolution | FHD(1920x1080) | SD(640x480) | |
| Image Sensor |
IMX291LQR-C 2.1M Pixel, CMOS, 1080P | OV9750 1.2M Pixel, CMOS, 720P | ||
| Rens | 1 / 2.8”, 650nm Cutt-Filter | 1 / 3.6” 650nm Cutt-Filter, 850nm Pass Filter | ||
| Angle View |
132°(D) / 109°(H) / 56°(V) | 121°(D) / 91°(H) / 62.7°(V) | ||
| Record | Frames | 30fps | 30fps | |
| Drive Mode |
Continuos Recording | 1min | ||
| Event Recording : impact, fast start, fast brake, fast turn |
before 7sec, after 7sec | |||
| Parking Mode |
Event recording : impact, motion detect |
|||
| Display | 3.5” TFT LCD touch | |||
| uSD Memory | Class10, TLC NAND, upto 64GB | |||
| Back Up Battery | 5.4V, 3.5F EDLC Battery | |||
| Sensor | 3-AXIS, Accellometer | |||
| Power |
+7V ~ +36V - Reverse Voltage Protection - Over Voltage Protection - Over Current Protection |
|||
| Dimension | Size | 122 x 75 x 32.5mm, 160g | ||
