5CH VIEW | Vehicle Driving Video Recorder

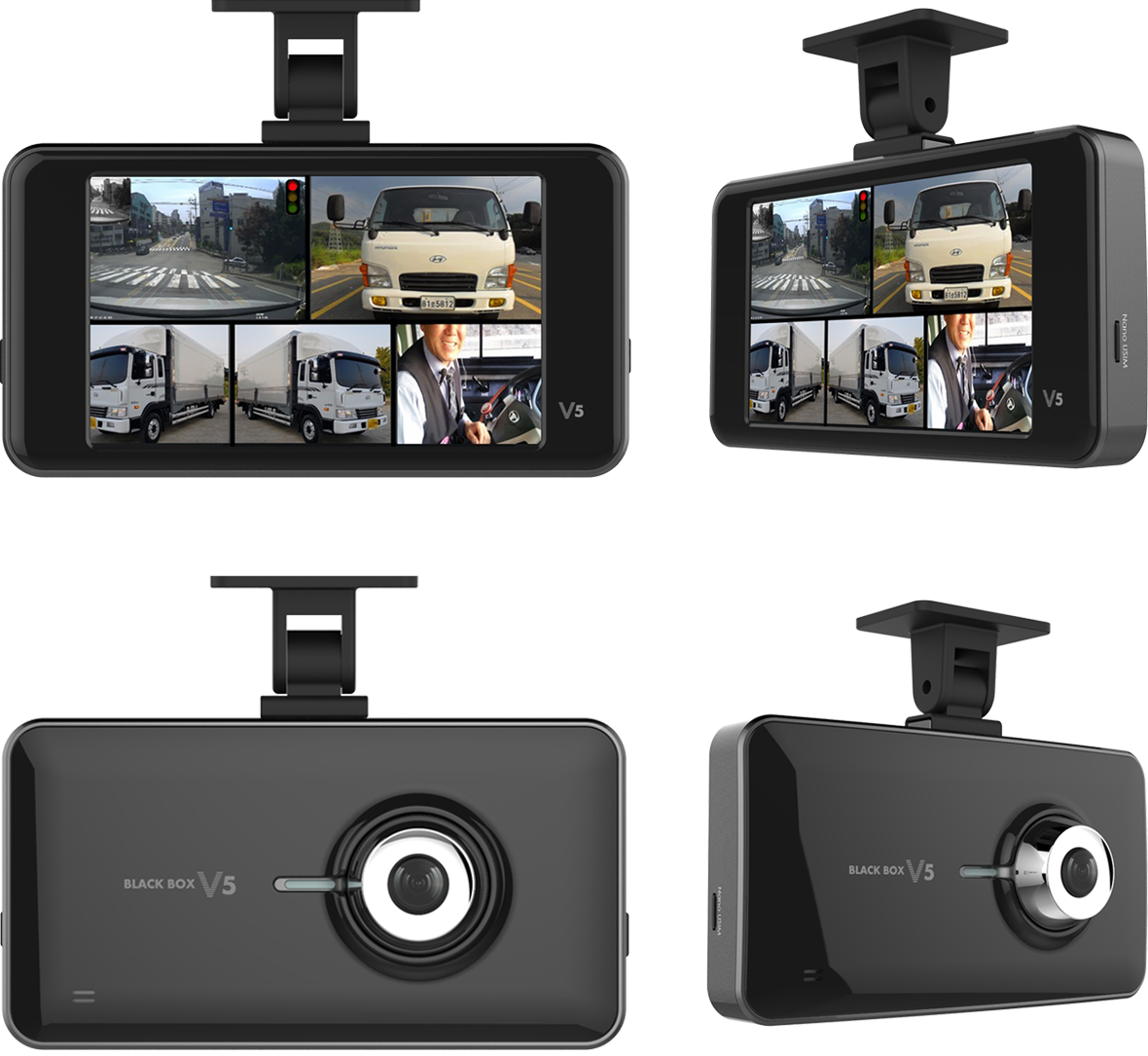

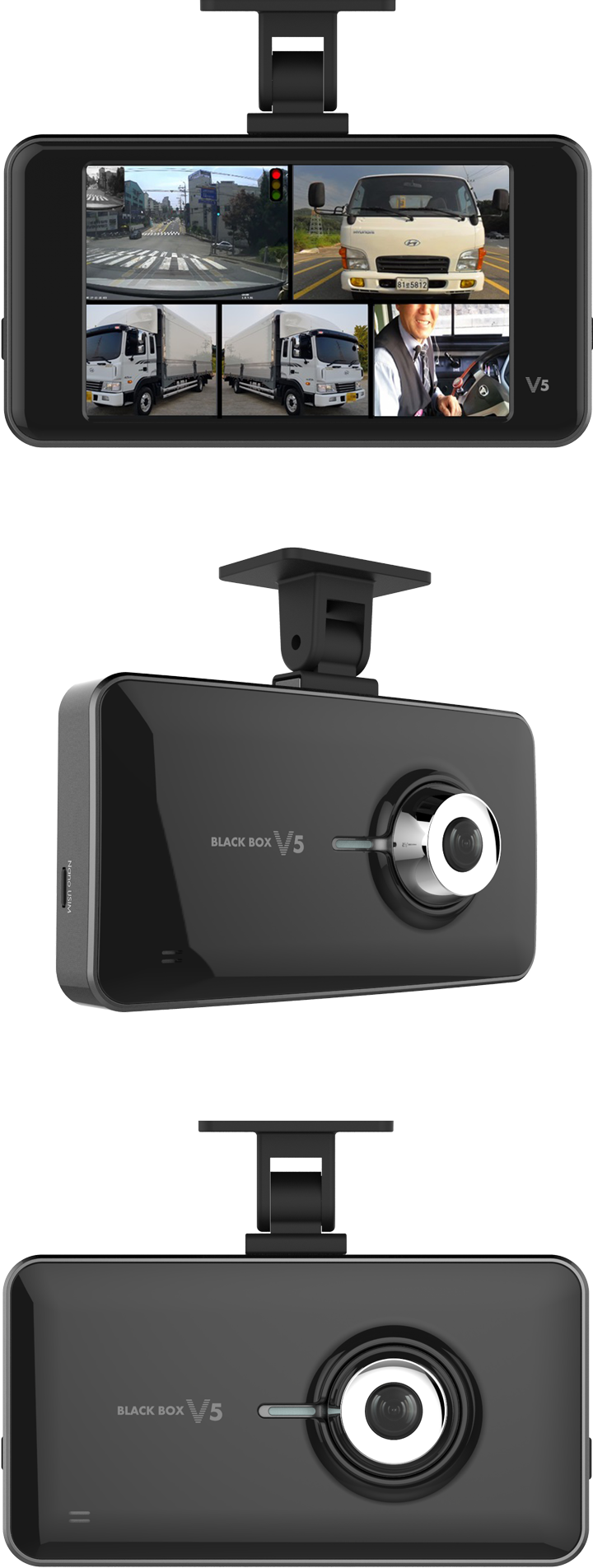

5Ch View LTE Vehicle Driving Video Recorder with 5” LCD
All in one optimized high performance product implementation built in 1CH camera and external 4Ch camera interface for recording front/rear/inside/Side(Left/Right) of vehicle, LTE communication modem with GPS and one internal antenna for it

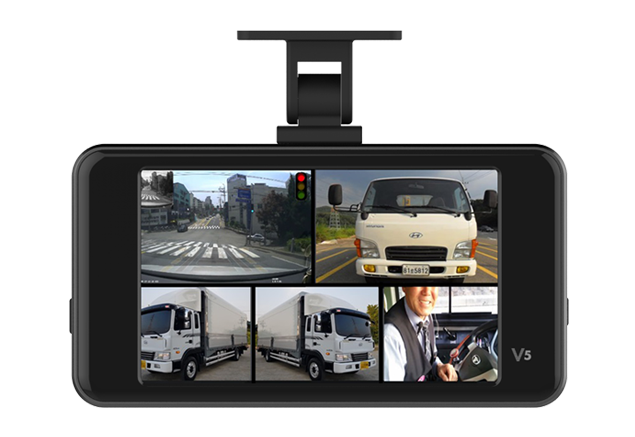

Built-in Wide screen LCD with touch screen panel can provide live-view, easy and fast recorded/recording video check and user friendly GUI for function control.
Real time record with high quality video of 1CH Full-HD and 4CH HD, GPS and G-sensor data
All-in-one built in antenna design so that applying various communication companies’ communication frequency bandwidth integrally
Various LTE category are possible to apply compatibly so that it can respond to IoT customer’s requirements and service flexibly

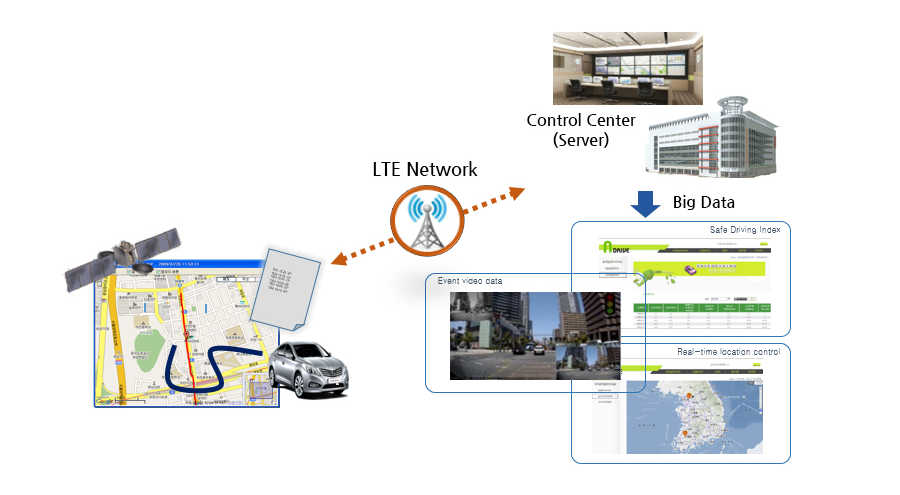

Interlocking with control server by LTE connecting, it can be used for controlling vehicle driving history with real-time location by sending GPS data
Using drive and driver’s condition as Big Data for safe driving control by sending each event information such as car accident, sharp turn, sudden stop and quick start to Cloud Server
| ITEM | Specification | |||
|---|---|---|---|---|
| LTE Modem | CPU | Arm 32bit Cortex-A7 CPU, built-in Linux (MDM9X07 or MDM9X28) | ||
| GPS | A-GPS & S-GPS | |||
| Category | Cat.1, Cat.4 | |||
| Black Box | Core | Embedded Arm Cortex-A9 CPU, 792MHz (A12A35) | ||
| Memory | DDR3 Memory : 512MB-32bit, NAND Memory : 256MB-8bit | |||
| Front | Rear | |||
| Camera | Resolution | FHD(1920x1080) | HD(720x480) | |
| Image Sensor |
IMX291LQR-C 2.1M Pixel, CMOS, 1080P | OV9750 1.2M Pixel, CMOS, 720P | ||
| Rens | 1 / 2.8”, 650nm Cutt-Filter | 1 / 3.6” 650nm Cutt-Filter, 850nm Pass Filter | ||
| Angle View |
132°(D) / 109°(H) / 56°(V) | 166°(D) / 126°(H) / 90°(V) | ||
| Record | Frames | 27.5fps | 27.5fps | |
| Drive Mode |
Continuos Recording | 1min | ||
| Event Recording : impact, fast start, fast brake, fast turn |
before 7sec, after 7sec | |||
| Parking Mode |
Event recording : impact, motion detect |
|||
| Display | 5” TFT LCD touch | |||
| uSD Memory | Class10, TLC NAND, upto 64GB | |||
| Back Up Battery | 5.4V, 3.5F EDLC Battery | |||
| Sensor | 3-AXIS, Accellometer | |||
| Power |
+7V ~ +36V - Reverse Voltage Protection - Over Voltage Protection - Over Current Protection |
|||
| Dimension | Size | 122 x 75 x 32.5mm, 160g | ||
