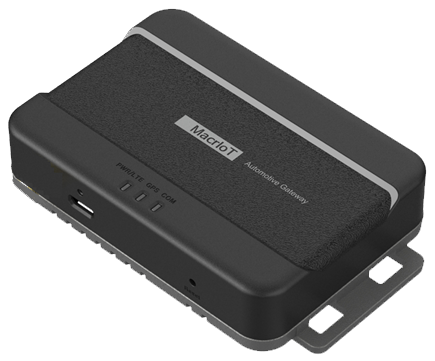

AIG-301 | Automotive Gateway
Automotive Ethernet / WiFi Gateway
Artificial Intelligent Automotive Gateway

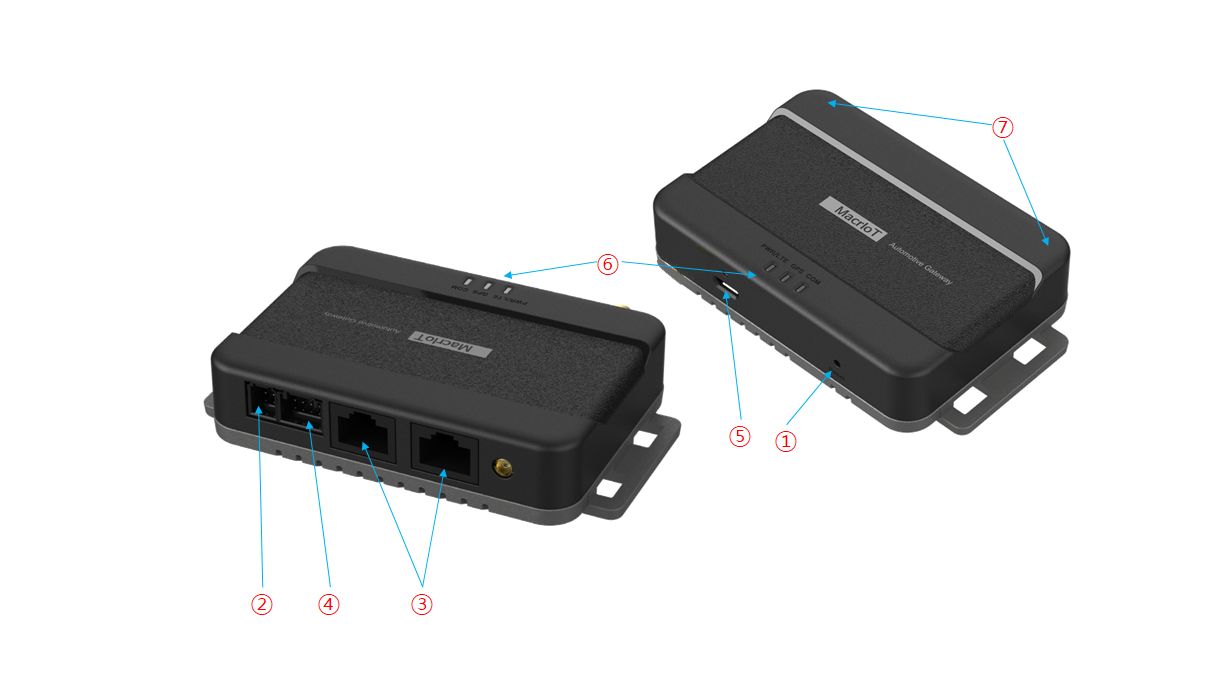

① Reset
② Power (B+, ACC GND)
③ Ethernet Port (2 ports)
④ CAN, RS232(Debug
⑤ USB Port
⑥ LED (PWR/LTE, LAN, COM)
⑦ LTE + GPS Intenna 위치 (기구물 안쪽)
# LTE communication Device Gateway based on IoT
# All-in-one Communication (LTE/Eth/WiFi/BT/GPS)
# 2CH CAN (CAN-FD) interface
# Compact Design and Low Power Consumption
# 6-AXIS Sensor
| ITEM | Specification | ||
|---|---|---|---|
| MCU – Vehicle Interface | ARM 32bit Cortex-M4 CPU w/ FPU, 170MHz (512KB Flash, 96KB SRAM) | ||
| Processor | EC25, Qualcomm MDM9x07 (ARM 32bit Cortex-A7) | ||
| Network(4G LTE) | Multi Carrier | LGU+ / KT / SKT / KDDI / DOCOMO / SBM | |
| Down link/Up link | LTE-FDD | Max 150Mbps (DL), Max 50Mbps (UL) | |
| LTE-FDD | Max 130Mbps (DL), Max 30Mbps (UL) | ||
| 4G(LTE) Band | FDD | B1/B3/B5/B7/B8/B20 | |
| TDD | B38/B40/B41 | ||
| Category | Cat.1, Cat.4, Cat.m1, NB-IoT | ||
| Wireless I/F | Standard | 802.11 a/b/g/n/ac | |
| Wi-Fi Frequency Band | 802.11 a/b/g/n/ac | ||
| BLE | 2.4GHz, 40 Channel, BT4.1 | ||
| Wired I/F | CAN-FD | 2 Port (B-CAN, C-CAN, E-CAN, D-CAN) | |
| RS232 | 1 Port | ||
| Ethernet | QCA8334, 2 Port | ||
| Interface | GNSS | GPS, GLONASS, BeiDou | |
| Sensor | 6-Axis Accelerometer & Gyroscope (-40℃~85℃) | ||
| LED | 3 LEDs | ||
| SIM | E-SIM, u-SIM supported | ||
| USB 2.0 | LTE Debug | ||
| Lithum Ion Battery (Backup) | 700mAh, 0.2C, 0℃~45℃ (Vr=3.7V, Vm=4.2V) | ||
| Power | Operation Voltage | DC12V ( DC12V / DC24V ) ISO7637-2(1,2a,2b,3a,3b) / ISO16750-2(4,5a,5b) / ISO7637-3(3a,3b) | |
| Consumption | Max 5W (Normal), 24mW (Sleep) | ||
| Dimensions / Color | 89(L) x 59(W) x 21.3(H) mm / Dark Gray Black | ||
| Environment | Storage Temperature | -40°C ~ +85°C | |
| Operation Temperature | -20°C ~ +75°C | ||
