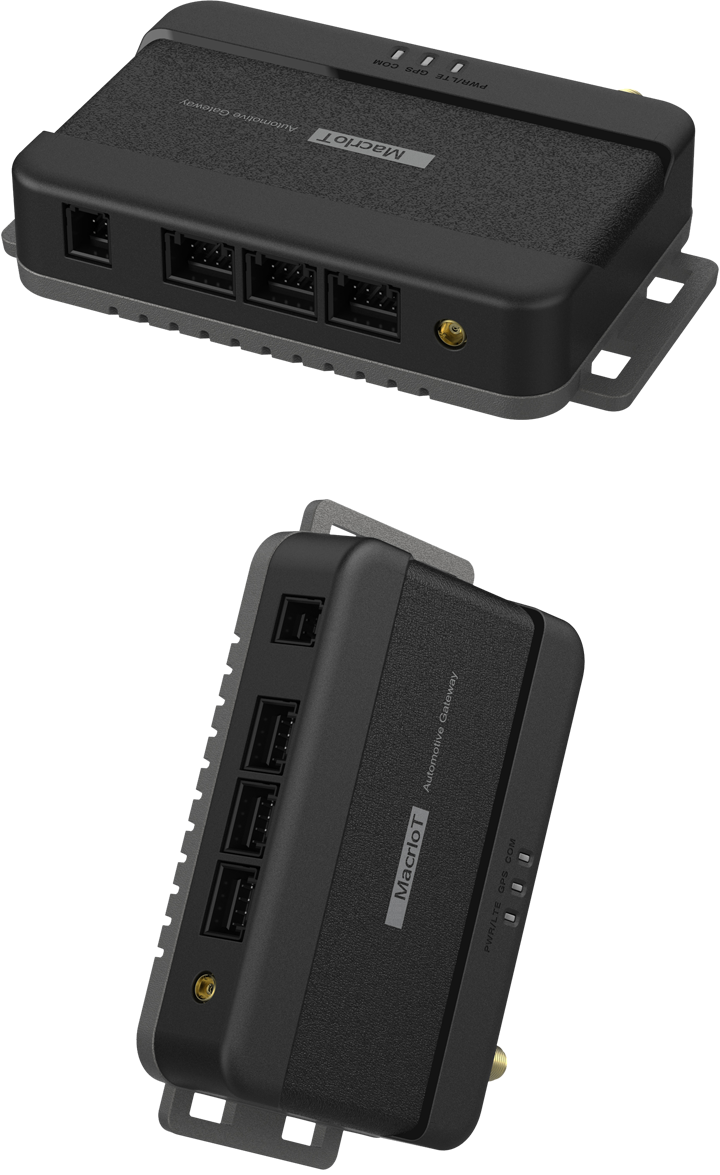

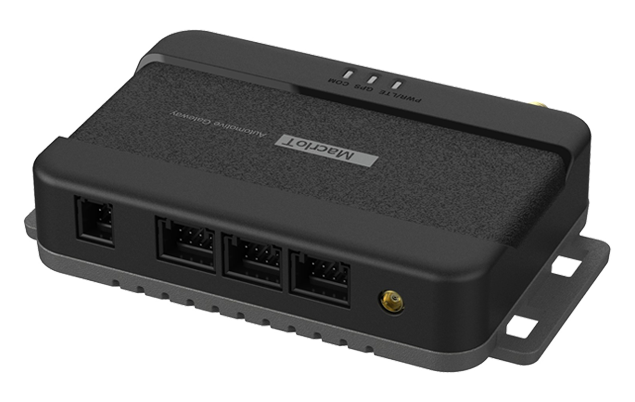

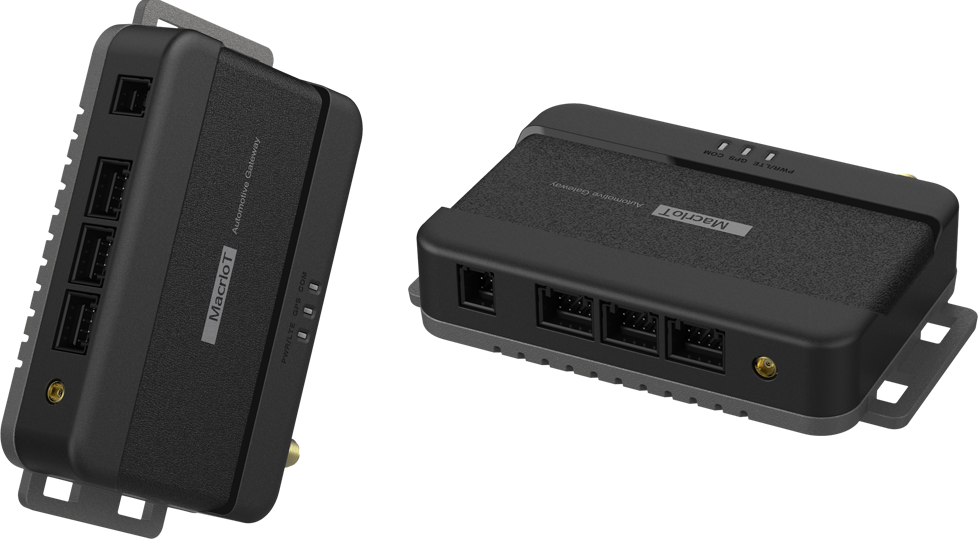

AIG-300 | Automotive Gateway
Artificial Intelligent Automotive Gateway / Car Sharing(Rent-car)
# Wired : RS232C(2)/RS485/GPIO/USB/Ethernet
# Multi CAN-FD support: B-CAN, C-CAN, P-CAN, diagnosis-CAN
# BLE5.0, RFID(optional) support
# 2CH. Black box
# FOB (Fake Key)
# Built-in battery (within 1000mA)
# Sleep Mode Support
# FW Upgrade – Modem, internal/external Device
| ITEM | Specification | |
|---|---|---|
| LTE Modem | CPU | Arm 32bit Cortex-A7 CPU, built-in Linux (MDM9X07 or MDM9X28) |
| GPS | A-GPS & S-GPS | |
| Ethernet | 2 Port | |
| USB | 1 Port | |
| Category | Cat.1, Cat.4 | |
| MCU | Core | Arm 32bit Cortex-M4 CPU, w/h FPU, 170MHz |
| Memory | Flash Memory : 512KB SRAM Memory : 96KB |
|
| CAN | 3 Port (CAN-FD Support) | |
| RS232C | 3 Port | |
| RS485 | 1 Port | |
| GPIO | Supported | |
| Wireless | BLE 5.0 | |
| SIM Card | micro uSIM Socket, (eSIM support) | |
| Back Up Battery | 700mA 4.2V Lithium-lon Pack Battery | |
| Sensor | 6-AXIS, Accelometer & Gyroscope | |
| Power |
+7V ~ +36V - Reverse Voltage Protection - Over Voltage Protection - Over Current Protection |
|
| Dimension | Size | 89(L) x 62(W) x 23(H)mm |
| Weight | 95g | |
| Material | Plastic | |
