MacrIoT

Interface Wired Interface
- 8 ports : RS485, RS232C(3ports), CAN(2ports), Digital I/O(2ports)
Wireless Interface
- WiFi 801.11bgn / BLE 4.1

- Zigbee, Wision, LPWA
Communication Mode Cat1, Cat4, Cat M1, NB-IoT GPS : AGPS, Standalone Support

LTE communication Automotive gateway based on loT

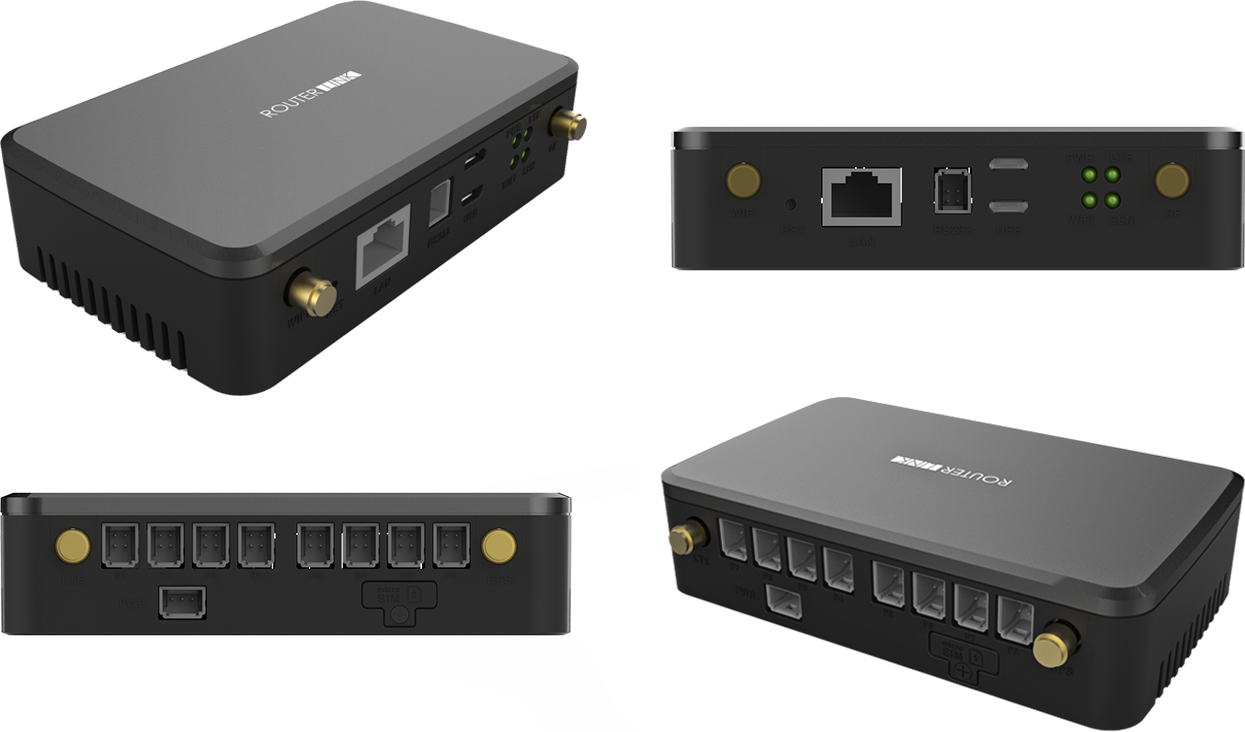

As AIG-200 is an integrating automotive gateway, it can be used various function device such as from simple LTE Modem, LTE router to LTE gateway.
It is loT device which is installed application expandability of loT service and it man-ages and controls various devices in vehicle by integrating connection.

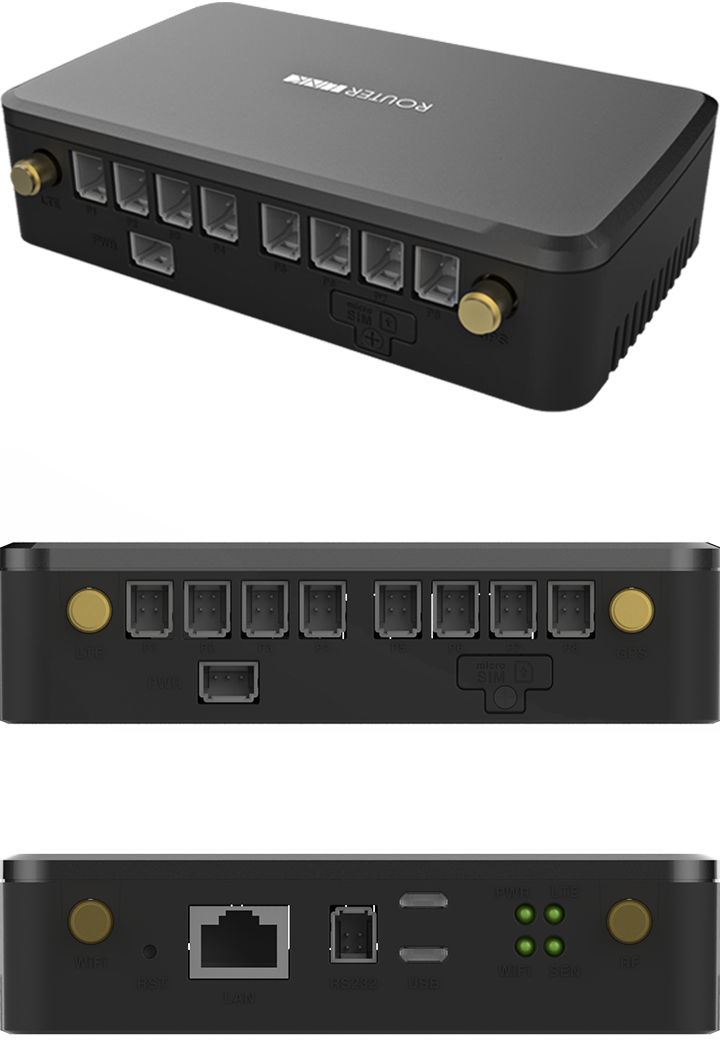

Multi-port interface
AIG-200 is applying multi-port interface so that it is easy to connect to various devices in vehicle and also be possible to customize by each connection device interface.
As it is possible to apply various wireless standards, it can execute LPWA gateway function.
All-in-one LTE Communication
As AIG-200 is the Multi-Carrier supported product, it supports Korea and Japanese telecommunication companies communication frequency bandwidth with the integral antenna.
Because it is designed to be compatible to Cat.1, Cat.4, Cat.m1 and NB-loT which is LTE communication speed standards and to be applied ESIM and USIM, it can be used selectively by customer's requirements.

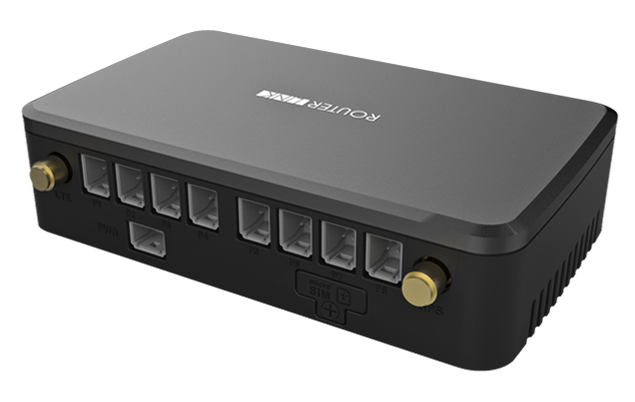

Compact Design Product
AIG-200 is easy to install inside and outside of all environment as it is designed as a small size with optimized layout.

Product Specification

ITEM		Specification
LTE Modem	CPU	Arm 32bit Cortex-A7 CPU, built-in Linux (MDM9X07 or MDM9X28)
	GPS	A-GPS & S-GPS
	USB	1 Port
	Category	Cat.1, Cat.4
MCU	Core	Arm 32bit Cortex-M4 CPU, w/h FPU, 170MHz
	Memory	Flash Memory : 512KB SRAM Memory : 96KB
	CAN	1 Port (CAN-FD Support)
	RS232C	4 Port
	GPIO	3 Port
Ethernet		LAN 10/100Mbps
Wireless		WiFi 802.11n 2.4Ghz
SIM Card		micro uSIM Socket, (eSIM support)
Power		+7V ~ +36V - Reverse Voltage Protection - Over Voltage Protection - Over Current Protection
Dimension	Size	110 x 68 x 28mm
	Weight	150g
	Material	Plastic
